8-дюймовая сетевая камера с функцией распознавания лица

If you need anything, you can contact me and add WhatsApp:+86 17375790872
Thermal Infrared and Facial Recognition Tablet Network Camera

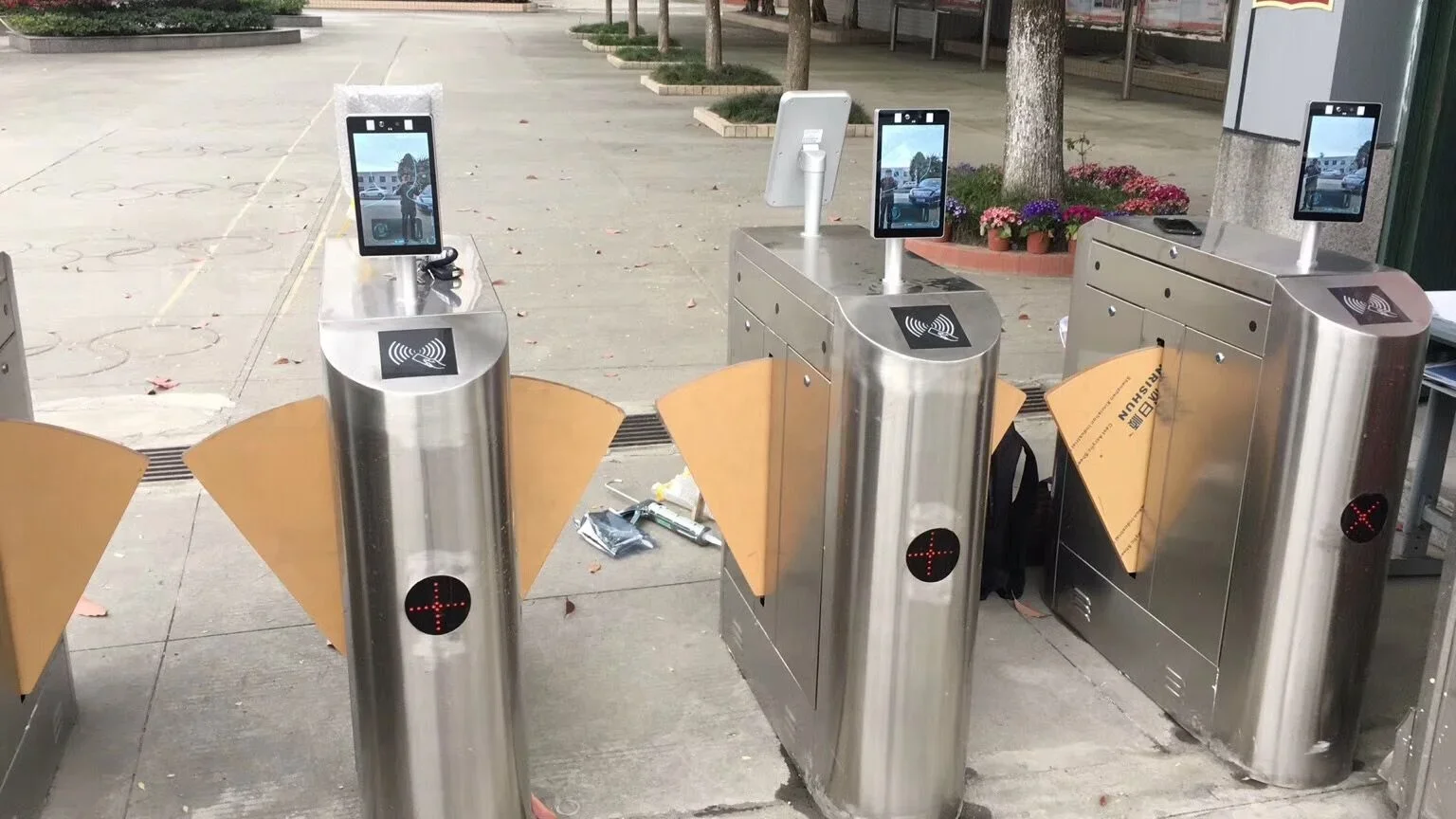

TA8201R-8T This face recognition and thermal detection terminal device can detect elevated skin temperatures brought on by various external causes, with pinpoint accuracy. This makes them a non-invasive first step for febrile detection. Perfect for adjunct use in hospitals, sub-acute health settings, public areas (i.e. airports), and more.Also this device adopts deep learning algorithm, which helps to recognize the face faster and more accurate. It also supports multiple authentication modes: 1:1 face match, etc. When installed on the turnstile, it can be applied in multiple scenarios, such as buildings, businesses, financial industries, and other important areas.
Thermal and optical Bi-spectrum with facial recognition
Built-in high accuracy thermal infrared module,temperature detection range 35℃~42℃,precision±0.3℃
Support real-time display and overlay of human body temperature OSD
H.265+ /H.265 / H.264 / MJPEGH.265/H.264, 2MP(1920x1080)
Face detection speed:<300ms
Face Capacity: Max. 50,000 face storage
8 inch LCD Screen, 2 MP wide-angle dual lens
Built-in IO output or Wiegand out,easy to communicates with the third-party turnstile
Mode
Thermal Infrared and Face Recognition Tablet Network Camera
TA8201R-8T/TR8201R-8TP
Display
8 inch LCD
Thermal
Image Sensor
Far infrared temperature sensor
Resolution
80×60
Spectral Range
8~14um
Temperature Measurement Range
Range:35~42℃ Precision:±0.3°C
Field of View
33°
Temperature Measurement
Global and regional
Temperature Exception Alarm
High temperature limit, Low temperature limit, Regional temperature exception
Optical
Lens Length
3.6mm
Field of View
118°
Min. Illumination
Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON)
WDR
≥120dB
S/N Ratio
≥46dB(AGC OFF)
Shutter Speed
1/5s to 1/20,000s
White Balance
Auto, indoor, outdoor, sodium lamp mode, manual
Day & Night
color/B/W
Video Compression
H.265 Main Profile / H.264 High profile / M-JPEG
Max Resolution
1920x1080@30fps
Resolution
Main Stream :1920x1080,1280x960,1280x720,720x576
Sub stream :640x480,352x288,320x240,176x144
MJPEG :1920x1080,1280x720,shut down
Stream
CBR,VBR( from 32Kbps to 10Mbps)
Audio Compression
G711,PCM
AI
Face Capacity
Max. 50,000 face
Recognition Speed
<300ms
Live Detection
support
General
Power Interface
DC12V
Network Interface
1 10M/100M Ethernet port (RJ-45)
Wiegand
1 channel
Digital interface
1 channel
Power Consumption
5W
Work Temperature/Humidity
0%-90% RH(Non-condensing)
Operating Temperature
-20°C ~60°C
Dimension
215 mm × 125 mm × 25 mm (with bracket)
Weight
Approx. 1.0 kg
