WF-660 HD 720P H.264 1,0-мегапиксельная беспроводная IP-камера, встроенная ИК-подсветка, поддержка TF-карты

1) Megapixels HD CMOS sensor, support 720p (1280*720)/640*480/320*240/160*120 video resolution.

2) Adopt H.264 & MIPEG compression format, image very clear and move smoothly suitable for local, internet and cross-platform view.

3) Support P2P.

4) Support smart phone view.

5) Support ONVIF .

6) Support 2 way audio, built-in microphone.

7) Support maxim 32G SD card for video and picture storage. User can set the time of video and the detective. You can download the file of the SD card from any network.

8) Support WPS (Wi-Fi protected setup) You do not need to know the SSID and security keys or passphrases when connecting WPS-enabled devices.

9) Support IR-CUT and color filter change automatically (IR-Cut), no any color difference.

10) Support WIFI function, unique antenna makes the wifi signal stronger.

11) Support UPNP function.

12) Infrared LED for night vision covers 8m area, to realize 24 hours monitoring

13) Horizontal rotation range 0-270 degree, vertical ration range 0-120 degree.

14) Support smart mobile phone view (android, iPhone, windows mobile)

15) Support clients software of android, Apple, etc.

16) Support video view by other browsers like as IE, firefox, safari etc.

17) Allow remote viewing video and record from any internet connection

18) Multi-level users management and passwords definition.

19) Support UPNP, DDNS, WPS(You do not need to know the SSID and security keys or passphrases when connecting WPS-enabled devices.)

20) Support multi-view. Long time recording. Video replaying etc.

21) Support motion detection, email FTP alarm motion detection alert via email or upload image to FTP; It also sends alarm info to the alarm server.

22) Adopt the TCP/IP network protocols and built-in web server. Users can browse video through IE and other browsers. Data is transferred through one port; it is easy for user to do the network setting.

23) 1, 4, 9, 16, 25, 36, 64, 100 multiple video display optional in one screen, support record, alarm, remote playback on records and other management functions.

24) Manufacture provides free multi-camera management software.

Specification:

1) Image capture:

- Sensor: 1.0 Mega pixels CMOS sensor

- Minimum illumination: IR lights on

- Lens: f=3.6mm, fixed iris F=3.6mm

- IR Cut: Support IR and color filter change automatically

2) Pan/Tilt:

- Pan coverage: 270 degrees

- Tilt coverage: 120 degrees

3) Assistant:

- Lighting control: Auto/manual control

- Lighting: 10pcs 850nm infrared lights, 5m distance

4) Video and audio:

- First stream resolution: H.264 720P (1280*720) / 640*480 / 320*240

- Second stream resolution: MJPEG 640*480

- Compression: H.264/MJPEG

- Frame rate: 30fps

- First stream bit rate: 512Kbps ~ 4.096Mbps

- Second stream bit rate: 128Kbps ~ 1Mbps

- Image rotation: Flip / Mirror

- Supporting PBC mode: Push button configuration (PBC) – an actual push button on the hardware or through a simulated push button in the software

5) OSD: support

Network:

- Basic protocol: TCP/IP, HTTP, SMTP, RTSP, FTP, DHCP, DDNS, UPNP, NTP/ONVIF

- Other protocol: Wifi802.11b/g/n

6) Other features:

- Mobile phone view: Support

- Video control: Support

- Dual way audio: Support

- Memory snap or video into SD card

- Browser SD card: View or download from network

- Motion detection: yes

- Triggered Actions: Email / FTP / SD storage/ external alarm / send message to alarm server

- User setting: Three levels

- Date/ Time setting: Support

- Upgrade: Upgrade from network

- DDNS: A free DDNS provided by manufacturer

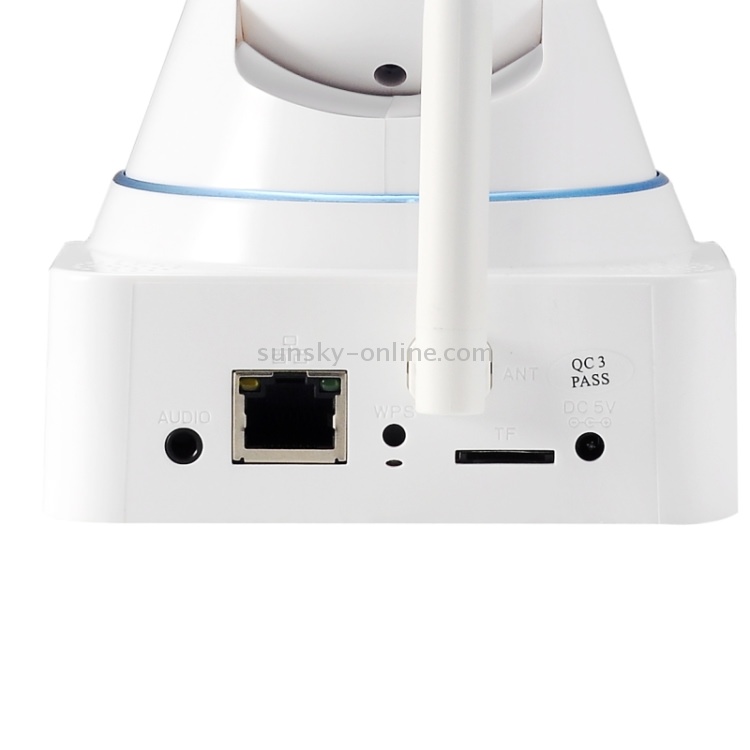

7) Hardware interface:

- Ethernet: 10 base-T / 100 base-TX

- Memory: SD slot

- Audio in: Internal MIC x 1

- Audio out: Audio output interface x 1

8) Physical index:

- Weight: 350g

- Power: DC 5V

- Power consumption: <6W

- Operating: -20~ 50 degree celsius

- Humidity: 10 ~ 80 percent, non-condensing

9) Software:

- OS Supported: Microsoft Windows XP / Vista / Windows7.

- Browser: Internet explorer 6.0 and above or compatible browser, safari / firefox etc.

- Online visitor: Support 10 visitors at the same time

- IP mode: Dynamic IP address, static IP address, supporting WPS (Wi-Fi Protected Setup). Client do not need to know the SSID and security keys or passphrases when connecting WPS-enabled devices.

- Use environment: Indoor use

- Power: DC 5V 2A

- Temperature: -10 to 50 degree celsius

- Humidity: 0 to 90 percent

- Size: 15cm x 12cm x19cm

- Weight: 0.65kg(Note: for real products)

- Package list: Power adapter, CD, manual, bracket
