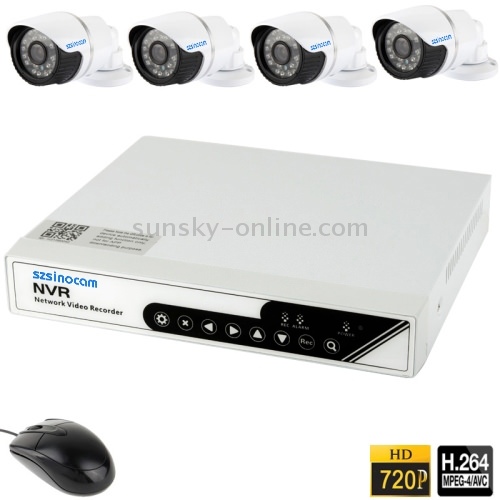

szsinocam 4CH 720P RJ45 NVR Kit с 4 x H.264 1.0-мегапиксельная / 4.0-миллиметровая инфракрасная IP-камера с фиксированным фокусным расстоянием, поддержка мегапиксельного просмотра сетевого HD-видео, хранения и воспроизведения / одновременного воспроизведе

1) Features:

- H.264 compression format, MJPEG/JPEG Baseline

- 1.0 Megapixel Resolution, support 720P(1280*720)

- Dual Stream, resolution, bit rate adjustable

- 4.0 mm Fixed Lens included

- Built-in IR-CUT, auto-switch day and night, IR Range 20 m

- Motion detection recording, alert with snapshots via email

- Build-in Privacy Mask, image snapshot, Title OSD, DDNS

- Support RTSP Compatible with VLC Media Player

- Support iPhone/iPad/Android Smart Phone

- Support IE6.0~8.0, Firefox, Google chrome browser

- Support up to 20 users online simultaneously

- IP66 Rated Waterproof & Vandal proof, Outdoor Use

- Free CMS Software, paid Software for optional

- Paid Software function: Face Detection, Missing/Abandoned Object Detection etc.

- Support P2P and PnP function for optional

2) Explanation

- Sensor: Progressive Scan CMOS

- Effective Pixels: 1280(H)*720(V)

- Min.Illumination: 0.1lux

- Day/Night: Auto,dual IR-Cut filter

- IR LED: 24pcs IR Led IR Range 20m (98.43feet)

- Max S/N Ratio: 39dB

- Electronic Shutter: Rolling Shutter

- Focal Length: Fixed Focal, 4.0 mm / F1.8

- Network Interface: 10/100M, RJ-45 connector

- Audio video encoding

- Video Compression: H.264 Main Profile; MJPEG/JPEG Baseline

- Resolution: Main Stream 720P (1280*720) 25fps

- Sub Stream: VGA 640*360 25FPS / 116*112 25FPS

- Video Bitrate: 32Kbps～4Mbps, support CBR/VBR

- Title OSD: Supports channel name, date, and video stream information overlay;

- OSD location is adjustable

- Privacy Mask: 4 configurable regions

- Image Orientation: image flip and mirror

- Auto Image Control Functions: Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF), Auto Black Level Calibration (ABLC)

- Image Controls: Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling 　

- Data transmission and storage

- Data storage: Video and Image

- Recording: Recording set up to record by motion trigger,alarm trigger, manual, or schedule

- Alarm Output: E-mail, Explorer, Software

- Network protocol: TCP/IP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP

- ONVIF protocols: Support 2.0 version

- Remote View: PC IE 6.0~8.0 , Firefox , Chrome ;max 10 users

- Mobile Phone iPhone, iPad, Android

- General Parameters

- Environmental Casing: Waterproof (IP66 Rated), Outdoor Use

- Installation: Brackets Included, Wall Mount

- Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

- Operating Humidity: 0% -85% RH

- Power: DC12V/1A

- Power Consumption: 9 W(MAX)

- Product size: 16.5cm(L) x 6cm(D)

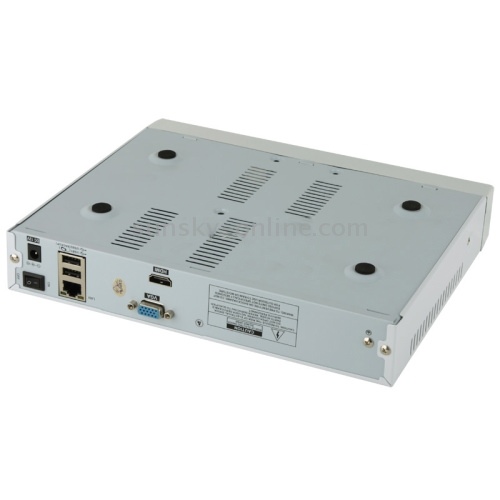

NVR:

- Can connect IP camera, IP speed dome camera and DVS; support Onvif protocol;

- Support megapixel HD network video preview, storage and playback;

- Click any area and zoom in or zoom out on the image by mouse;

- Support digital zooming under preview and playback modes;

- Support search, playback and backup by event;

- Support 4ch playback simultaneously.

- Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;

- The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;

- The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;

- Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

- The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;

- Recording backup can be accurate to second. Any time period of backup is available;

- The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;

- With 3G, WIFI wireless connection functions;

- Standard resolution which can be adjusted according to the display device in order to get the best image quality;

- Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD.

- Operating System: Embedded LINUX operating system

- Image Code Control: Image code quality adjustable, variable bitstream and constant bitstream optional

- Dual Stream: Each channel can set main stream and sub stream

- Video Standard: 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps

- Monitoring Image Quality: 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

- Image Motion Detection: Each screen can set mutiple detection areas and set 6-level

sensitivity(IPC Support)

- Recording Playback Quality: Any 4ch 1080P/720P playback simultaneously

- Region Cover: Every channel can set 4 cover regions(IPC Support)

- Recording Mode: Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)

- Backup Way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

- Operation Way: Mouse

- Local Login: User name and password

- Recording Storage: Local HDD, network

- Video Input:

-- ① 2×(1920*1080) +2×(1280*720) IP camera

-- ② 4×(1280*960) IP camera

- Audio Input: 4ch network audio input

- Video Output: 1ch VGA+1ch HDMI

- Audio Output: 1ch RCA auxiliary Output

- Network Port: 1 RJ45,10M/100M self-adaptive LAN port

- RS485 Port: Full duplex standard 485 port

- USB Port: 3 USB 2.0 ports(one on front panel, two on rear panel)

- Wireless Port: 3G，WIFI

- HDD Port: 1 SATA HDD Port

- MAX Capacity: Each port supports MAX 4TB HDD

- Mobile Surveillance: Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

- Power Supply: 12V/2.6A

- Power Consumption: ≤25(without HDD)

- Working Temperature: -10℃～ + 55℃

- Product size: 26cm x 22cm x 4.3cm
