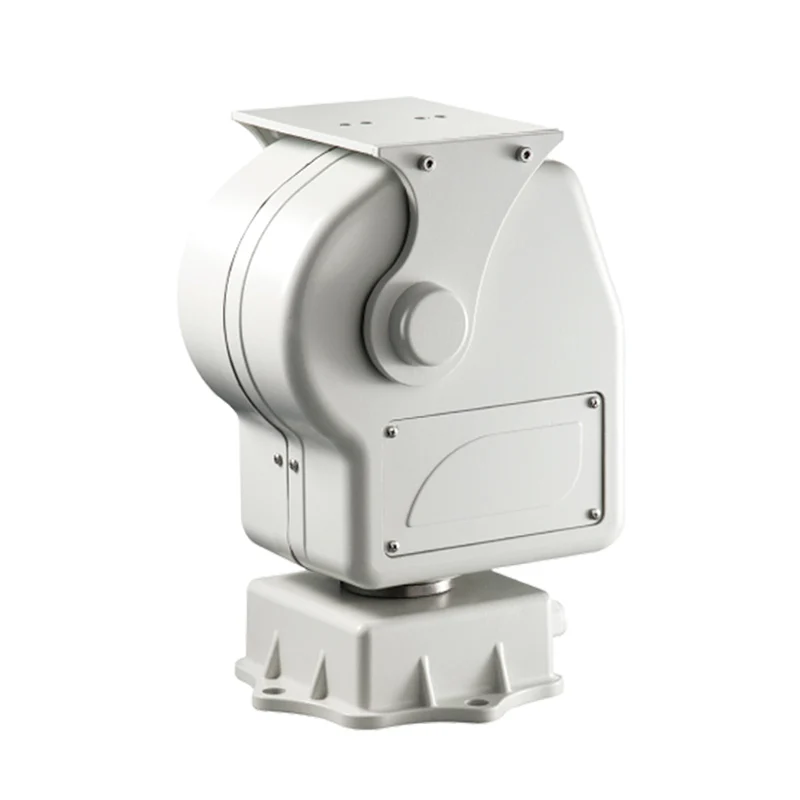

маломощная кастрюля и наклонная головка для легкой нагрузки мощностью 5 кг, подходящие камеры Ptz-радара, панорамирование, наклон и наклон робота против панорамирования и т. д. Протокол Pelco PTZ

Specifications
Model
JSA-EFPTZDU30L05 / JSA-EFPTZDU30LH05
Max Load
5Kg
Bearing mode
Top load/(side load compatible)
Driving mode
Gear drive
Pan Angle
0°～360°
Tilt Angle
-85°～+60°
Pan Speed
1°～9°/S，Optional 0.1°～9°/S
Tilt Speed
1°～5°/S，Optional 0.1°～5°/S
Preset Accuracy
± 1° / optional ± 0.1°
Preset
80
Auto cruise
Support
Interfaced
RS485
Protocol
Pelco_D
Baud Rate
9600
Address
1
Bottom cable
DC12V*1 RS485*1 RJ45*1 GND*1
Top cable
DC12V*1 RS485*1 RJ45*1 GND*1
Angle return
Not support；
Input voltage range
DC12V 50/60HZ； 20W
Operating temperature
-30 ~+60
Working humidity
<90%RH
Lightning protection
Input voltage range supply 4000V, communication and video signal 2000V
Prevention grade
IP66
Weight
4.8kg
Size
183mm(L)×167mm(W)×285mm(H)
Size
Order model
Model
Load
/Kg
Angle range
Speed range
Preset Accuracy
Angle feedback
Top outlet
Bottom cable entry
Pan
Tilt
Pan
Tilt
JSA-EFPTZDU30L05
5
0°~360°
-85°~60°
1°～9°/S
1°～5°/S
±.1°
Optional
GND*1
RS485*1
DC12V*1
RJ45*1[100Mb]
GND*1
RS485*1
DC12V*1
RJ45*1[100Mb]
JSA-EFPTZDU30LH05
0.1°～9°/S
0.1°～5°/S
±.0.1°
Project customization
Optional personalized customization, the customization range is based on the standard model, including
angle range, speed, inlet and outlet, software functions, etc. Contact Us: www.aiptz.com, aiptz@jsa-cctv.com
